Average Blade Lift Coefficient Calculator

The blade lift coefficient tells you how hard each rotor blade is working to make lift. It is a dimensionless number, the ratio of the lift a blade produces to the dynamic pressure acting on its area, so it applies to any rotor regardless of size. This tool uses a simplified Blade Element Momentum Theory (BEMT) estimate that turns two inputs, the thrust coefficient and rotor solidity, into an average lift coefficient. The result describes the blade at roughly 75% of its radius and assumes air flows evenly through the rotor disk, which makes it a quick sanity check for preliminary designs rather than a final answer.

What is blade lift coefficient?

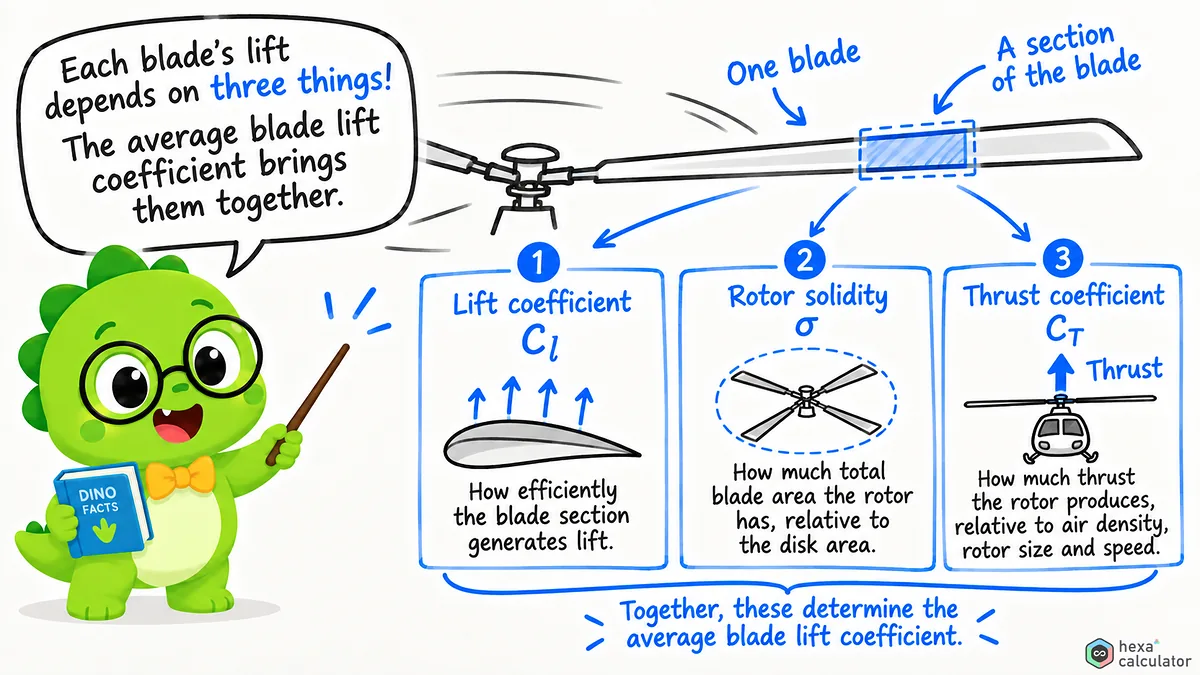

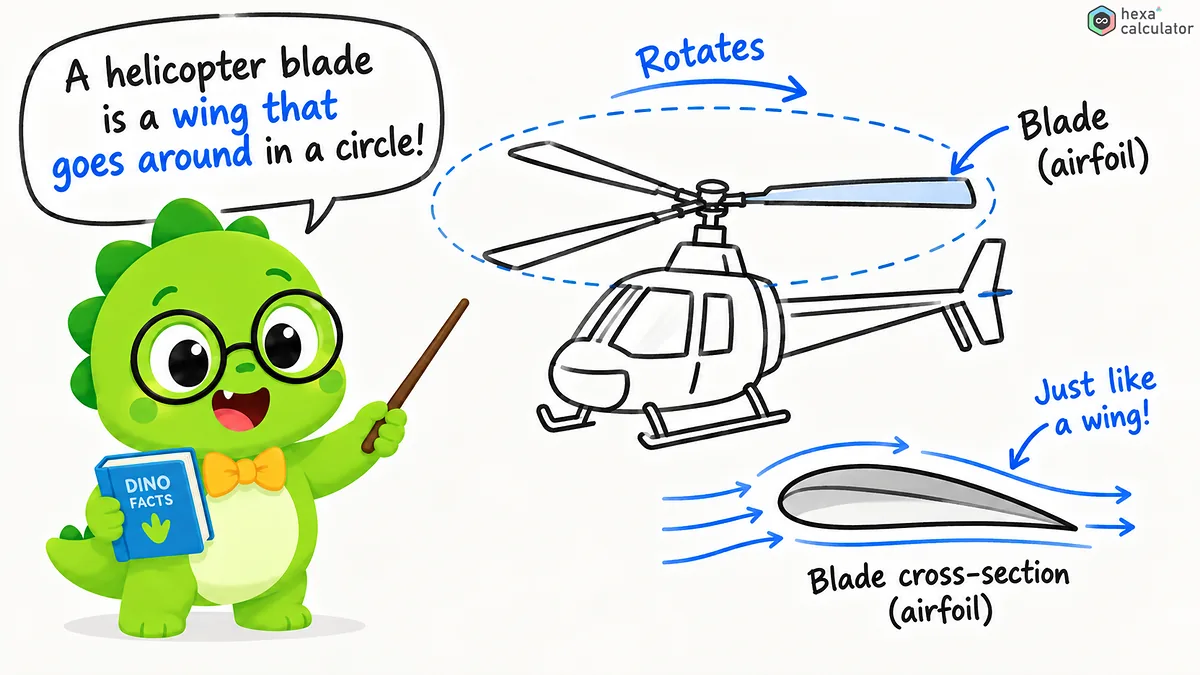

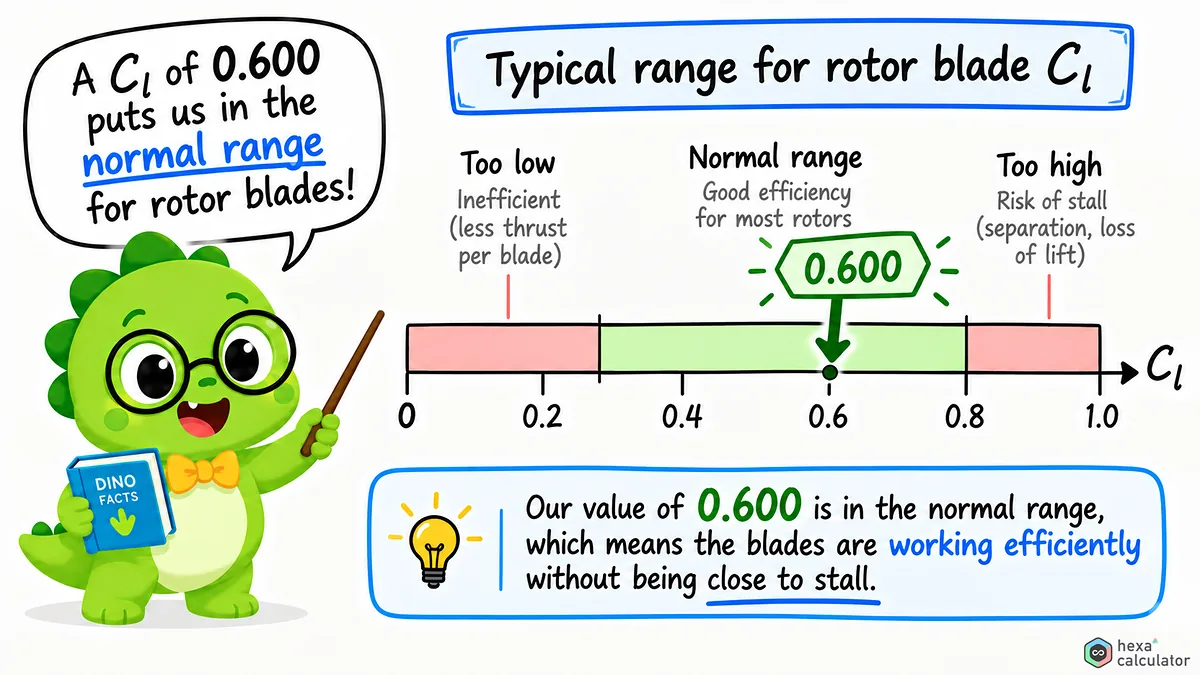

A rotor blade is not a fixed wing. Its speed through the air climbs steadily from the hub out to the tip, so a single airfoil number from a wind tunnel cannot describe the whole blade. The blade lift coefficient handles that by giving one representative value for the spinning blade, taken at the 75% radius point where most of the lift is produced. Efficient rotors usually sit between 0.3 and 0.7. Push much past that and the blade is working hard; drop well below it and the rotor is lightly loaded. Because the number is dimensionless, a Cl of 0.5 means the same thing on a camera drone and on a Chinook, which is exactly what lets designers compare rotor layouts on paper before anyone cuts metal.

How to use this calculator

Enter the thrust coefficient (CT) first. In a hover it usually falls between 0.002 and 0.01, climbing toward 0.02 in forward flight or hard maneuvers. Then add the rotor solidity (σ), which for most helicopters lands between 0.05 and 0.15. Fewer blades and high-speed designs sit at the low end, around 0.05 to 0.07; heavy-lift rotors with more or wider blades sit at the high end, 0.10 to 0.15. The average lift coefficient updates as you type. Below it, a sensitivity chart shows how the lift coefficient responds as thrust coefficient changes at your chosen solidity, and the data table lets you read off values across a range of operating conditions.

Understanding the formula

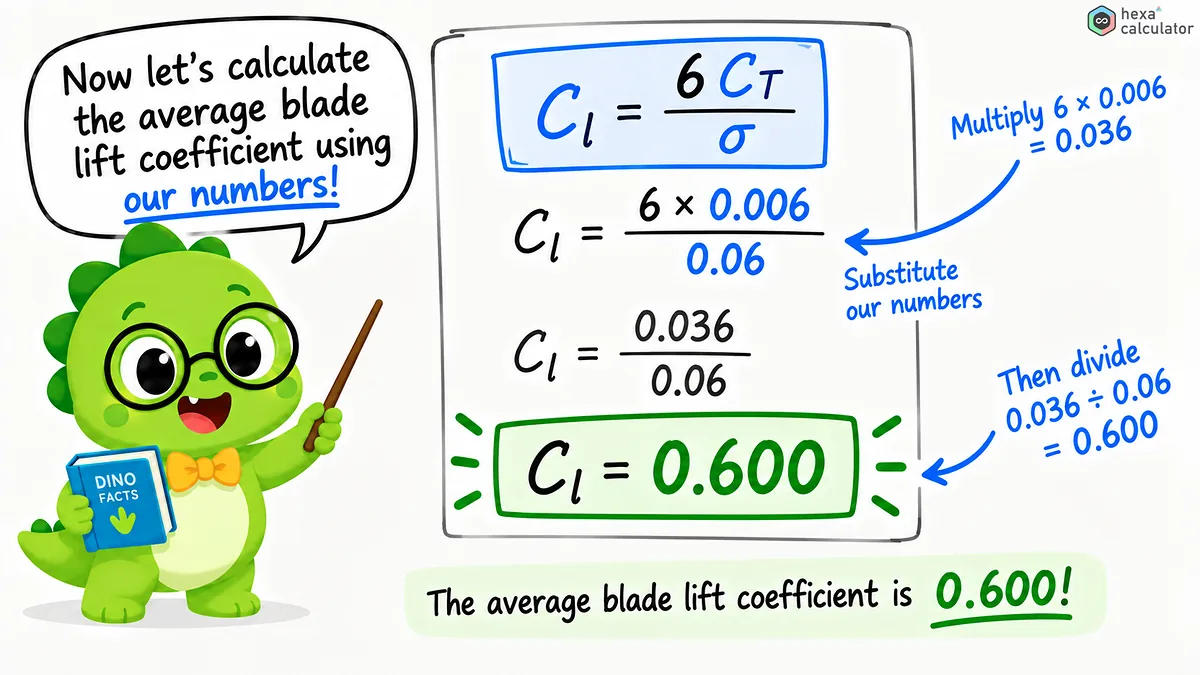

This comes from integrating the lift across the rotor disk under Blade Element Momentum Theory. Try a real example: a rotor with $C_T = 0.008$ and $\sigma = 0.06$. That gives

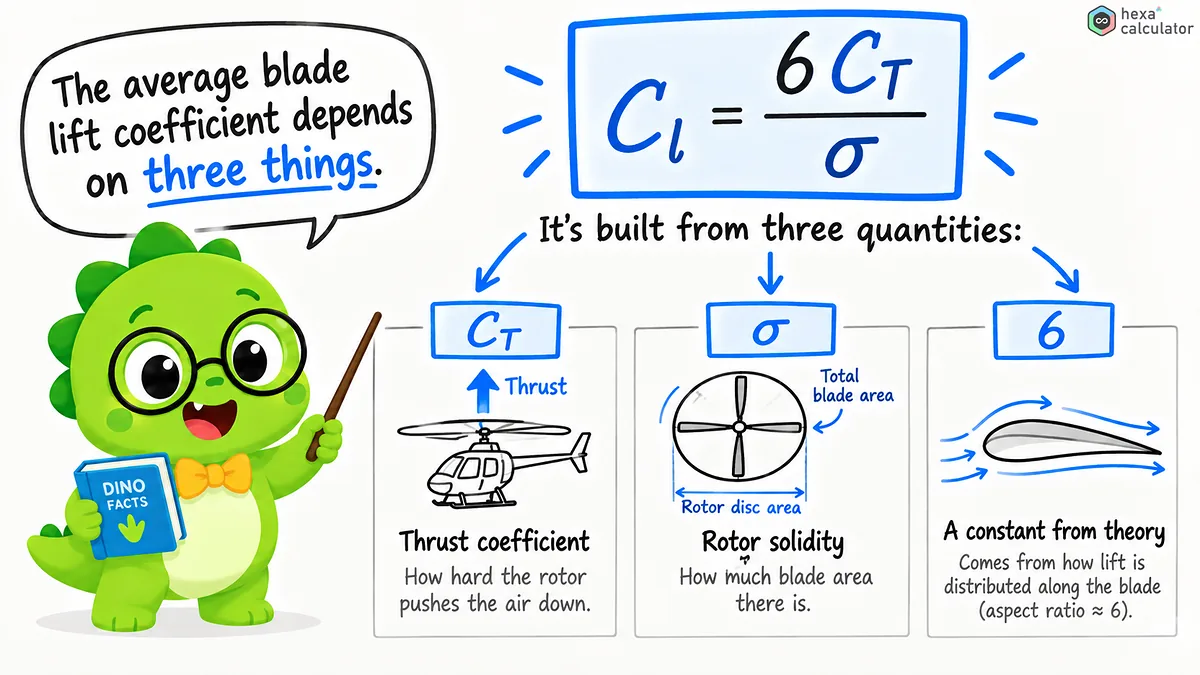

a sensible value for normal flight. The constant 6 falls out of the integration once you assume uniform inflow, and it pins the result to the blade's effective working point near 75% of the radius. Expand the same relationship and you get

which spells out the physical inputs behind it: thrust T, air density ρ, blade count N, chord c, radius R, and rotational speed Ω. The longer form makes one thing clear. Lift coefficient drops as you add blade area, and it drops fast as tip speed rises, because tip speed is squared.

Lift coefficient and angle of attack

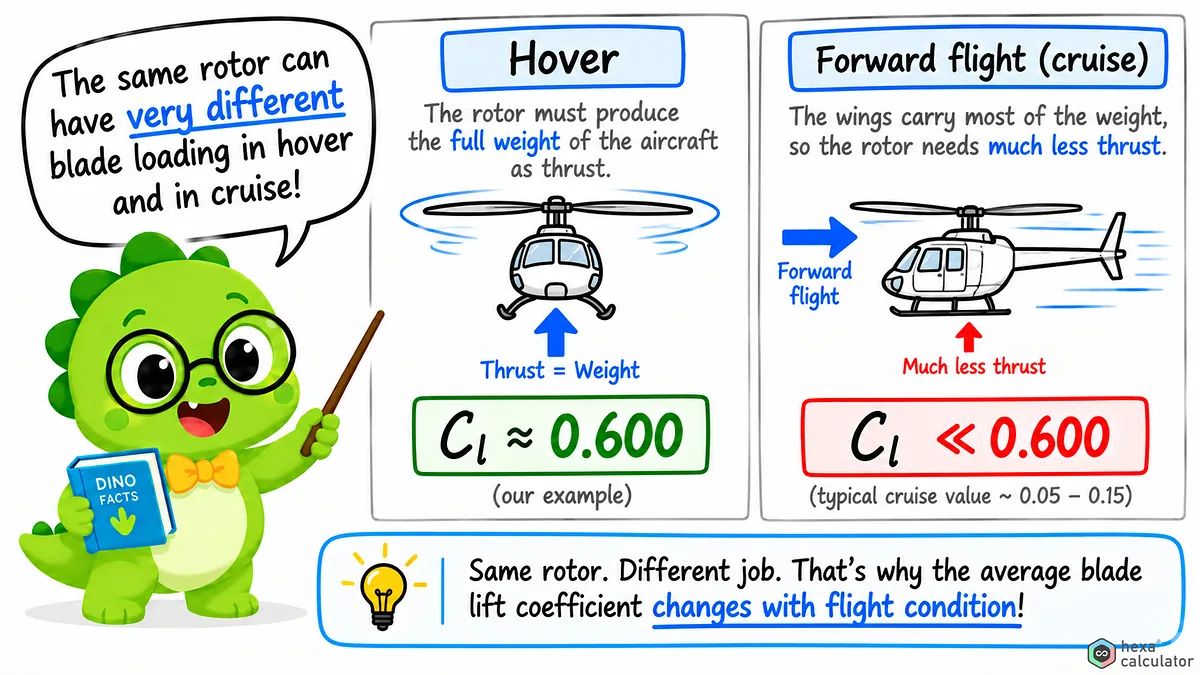

Lift coefficient and angle of attack move together. Pitch the blade more nose-up and the coefficient climbs in a nearly straight line, but only up to a point. For most helicopter airfoils that ceiling, the maximum lift coefficient (Cl,max), sits around 12 to 15 degrees. Past it the blade stalls: airflow separates from the upper surface, lift collapses, and drag spikes. Pilots manage this with collective pitch. In a hover every blade runs at a similar angle, but in forward flight the advancing blade meets faster air and needs less pitch while the retreating blade needs more to keep its share of the lift. That imbalance is why every helicopter has a top speed, and why hard maneuvers flirt with retreating blade stall.

Applications in helicopter design

This number shows up at almost every stage of rotor design. Early on it helps size the rotor: pick an acceptable lift coefficient and a target thrust coefficient, and you can back out the solidity you need. Later it flags whether a design sits in the efficient 0.3 to 0.7 band or creeps toward stall under high speed or heavy load. It feeds decisions about how many blades to use, how wide to make them, and how to twist them. Flight test teams also check predicted coefficients against measured ones to validate their models. And it makes trade-offs visible: more solidity lowers the required lift coefficient but costs weight and drag, while less solidity saves weight but pushes Cl up toward the stall.

Tips for accurate results

A few things keep the estimate honest. The formula reports one representative value at 75% radius and assumes rectangular, untwisted blades. Real blades use twist and taper to spread lift more evenly across the span, and this simplified model captures neither. It does a good job in hover and slow flight. Above about 50 knots, asymmetric airflow and blade flapping start to introduce errors that need a fuller analysis. So treat it as a first pass for serious work: get a ballpark here, then confirm with CFD or wind tunnel testing. Expect the closest agreement when the thrust coefficient stays under 0.012 and solidity sits between 0.05 and 0.12.

Frequently asked questions

What is a typical blade lift coefficient for helicopters?

Most helicopters run between 0.3 and 0.7 in normal flight. Below 0.3 the rotor is lightly loaded, usually a light aircraft turning at high rotor speed. Above 0.7 the rotor is working hard and getting close to its aerodynamic limits. Once you climb past about 1.0 the blades risk stalling, especially on the retreating side in forward flight.

How does rotor solidity affect lift coefficient?

They move in opposite directions. Add solidity, by using more blades or wider chords, and you lower the lift coefficient needed for the same thrust. A rotor at solidity 0.10 needs half the lift coefficient of one at 0.05 to make the same thrust, which is why heavy-lift helicopters often carry four or more blades.

Is this formula accurate for forward flight?

It is built for hover and slow flight, under about 50 knots. In forward flight the advancing blade sees much faster air than the retreating blade, and that uneven loading breaks the uniform inflow assumption the formula relies on. Above 100 knots the error can top 20%, so reach for advanced momentum theory or CFD when you analyze high-speed conditions.

What happens when the lift coefficient is too high?

Once Cl climbs past roughly 1.2 to 1.4, depending on the airfoil, the blade stalls. Airflow separates from the upper surface, lift drops off suddenly, vibration climbs, and the aircraft gets harder to control. This is what caps a helicopter's top speed and maneuverability, and it bites hardest at high altitude or heavy weight, where the blades already need larger angles of attack.

How do blade twist and taper affect this calculation?

The simplified formula assumes plain rectangular blades, so it ignores both. Real blades twist (less pitch toward the tip) and taper (narrower chord toward the tip) to spread lift more evenly along the span. Those features usually trim the effective lift coefficient at the 75% point by about 5 to 15% compared with this estimate, which improves efficiency and eases the bending loads on the blade.

This tool uses a simplified BEMT formula meant for preliminary analysis and learning. For production helicopter design, certification work, or anything flight-critical, work with qualified aerospace engineers and back up the numbers with validated tools and experimental data.
