Braking Torque Calculator

Braking torque is the twisting force your brakes apply to a wheel to slow it down. Kinetic energy tells you how much heat the brakes have to dump; braking torque tells you how hard the pads have to bite the rotor to actually slow the car. This calculator works out the disc-brake torque per wheel from four numbers: pad friction coefficient, hydraulic line pressure, caliper piston area, and the mean radius where the pad meets the rotor.

What is braking torque?

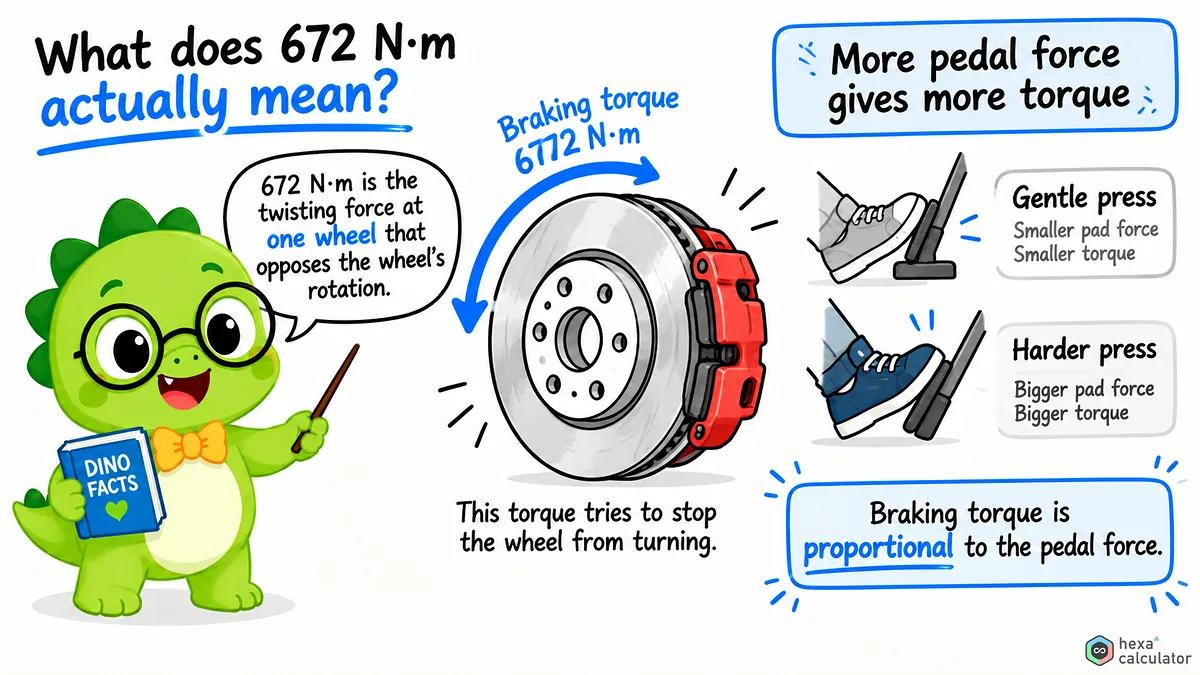

Braking torque, written $T_b$ , is measured in newton-meters (N·m). It's just torque applied in the stopping direction; the bigger the number, the harder the rotor is being slowed. Cars are designed so braking torque comfortably exceeds engine torque. A typical sedan engine might put down 200 to 300 N·m at the crank, while each front brake can apply well over 1,000 N·m to its wheel. Stopping fast matters more than launching fast.

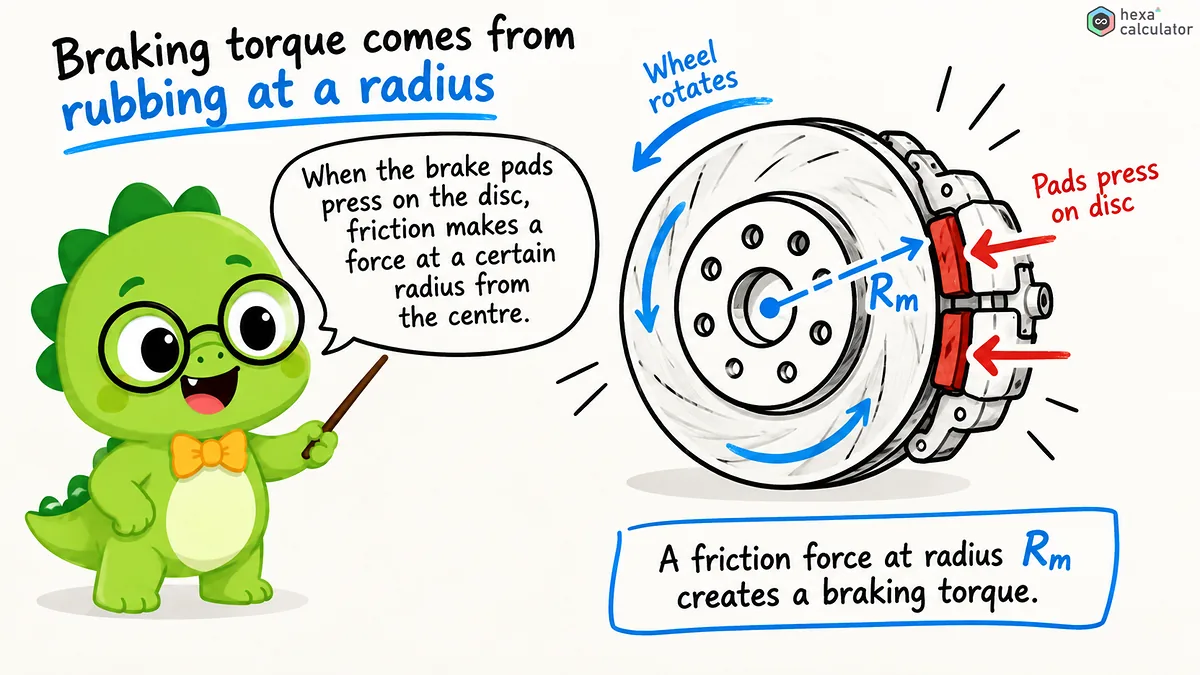

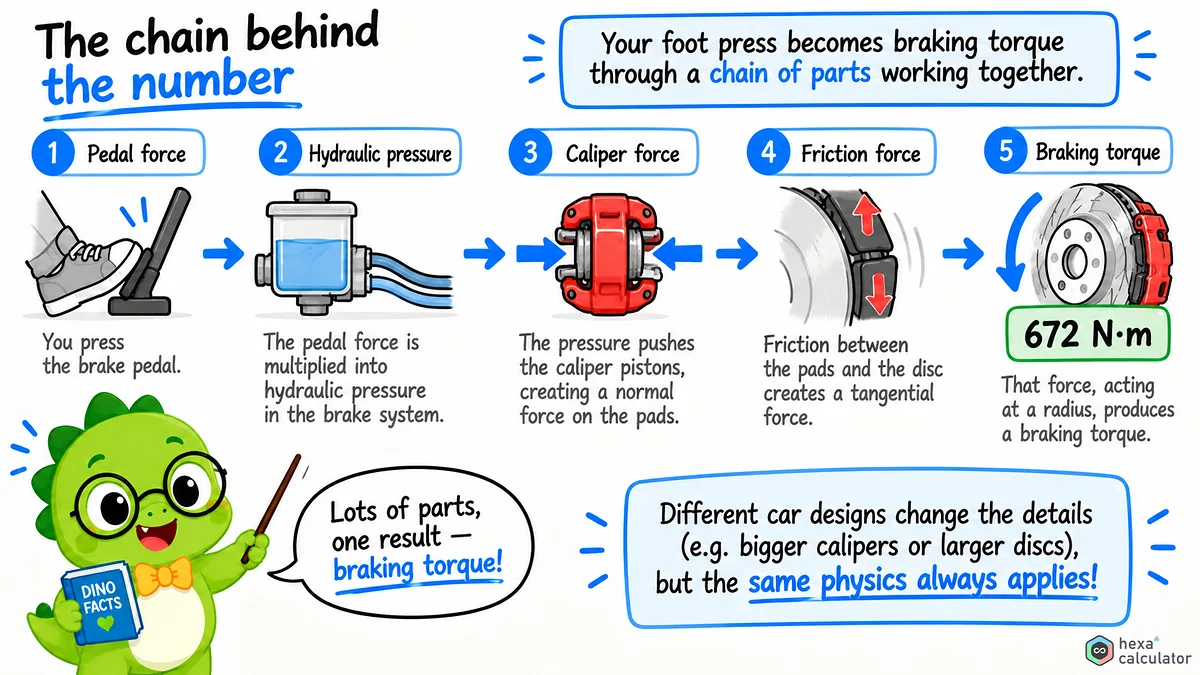

The torque itself comes from friction. Hydraulic pressure pushes the caliper pistons outward, the pistons clamp the pads against the rotor, and the pads scrub kinetic energy off as heat. Where the pads grip on the rotor also matters. Pads sitting farther from the wheel center get more leverage, the same way you'd push on a heavy door near the handle and not next to the hinge.

How to use this calculator

Fill in four of the five values and the fifth gets solved for you. Most of the time you'll want $T_b$ , the braking torque, but the formula rearranges cleanly in either direction. You can back out the brake pressure needed to hit a target torque, or work out the piston area for a redesigned caliper. Each field accepts metric or imperial units; conversion to SI happens behind the scenes before the calculation runs. The secondary panel below plots how the torque shifts as friction and pressure change.

Understanding the formula

For a standard disc brake with two pads squeezing one rotor, the torque works out to:

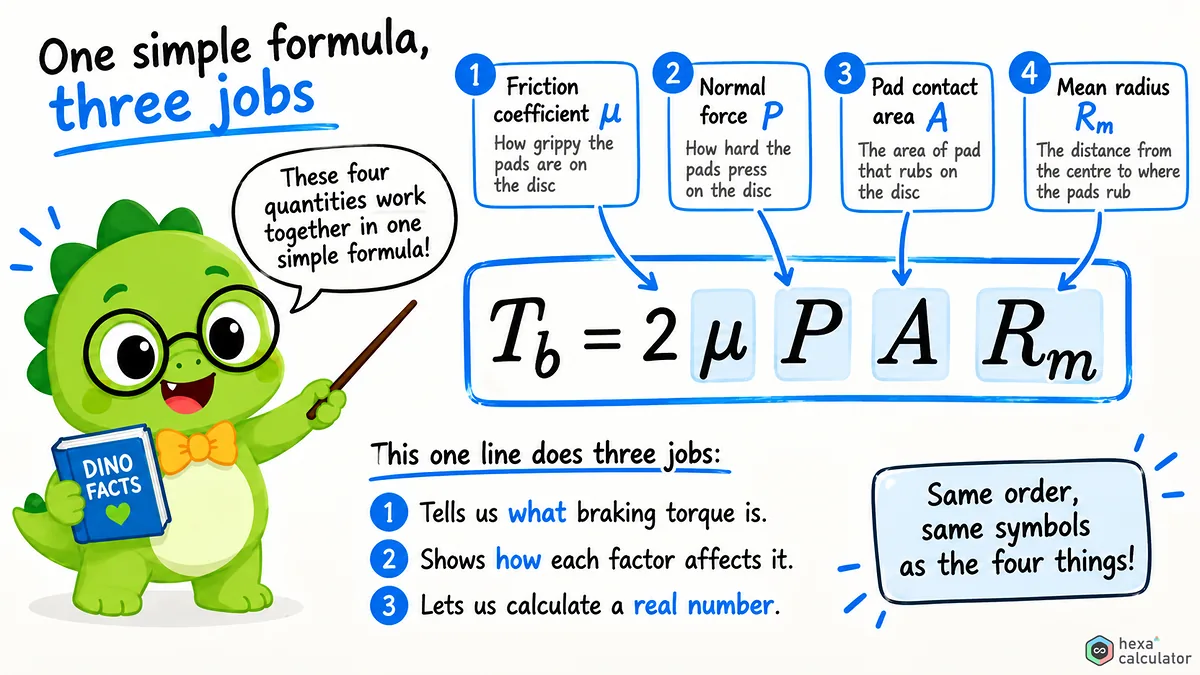

T_b = 2 \cdot \mu \cdot P \cdot A \cdot R_m

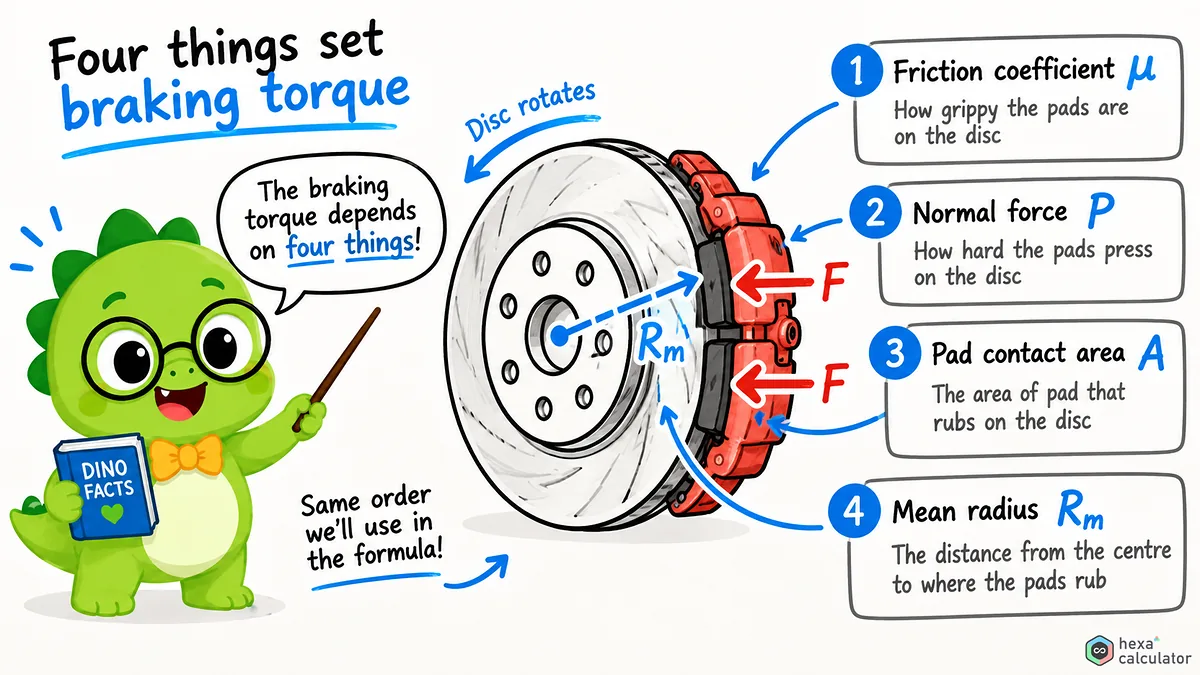

The factor of 2 covers both pads. Each side of the caliper has a pad pressing on the rotor, and each one contributes its own friction. $\mu$ is the dimensionless coefficient of friction between pad and rotor; a road car typically lives in the 0.3 to 0.5 range. $P$ is the line pressure in pascals, $A$ is the total piston area pushing on one pad in square meters, and $R_m$ is the mean radius from wheel center to the contact patch on the rotor.

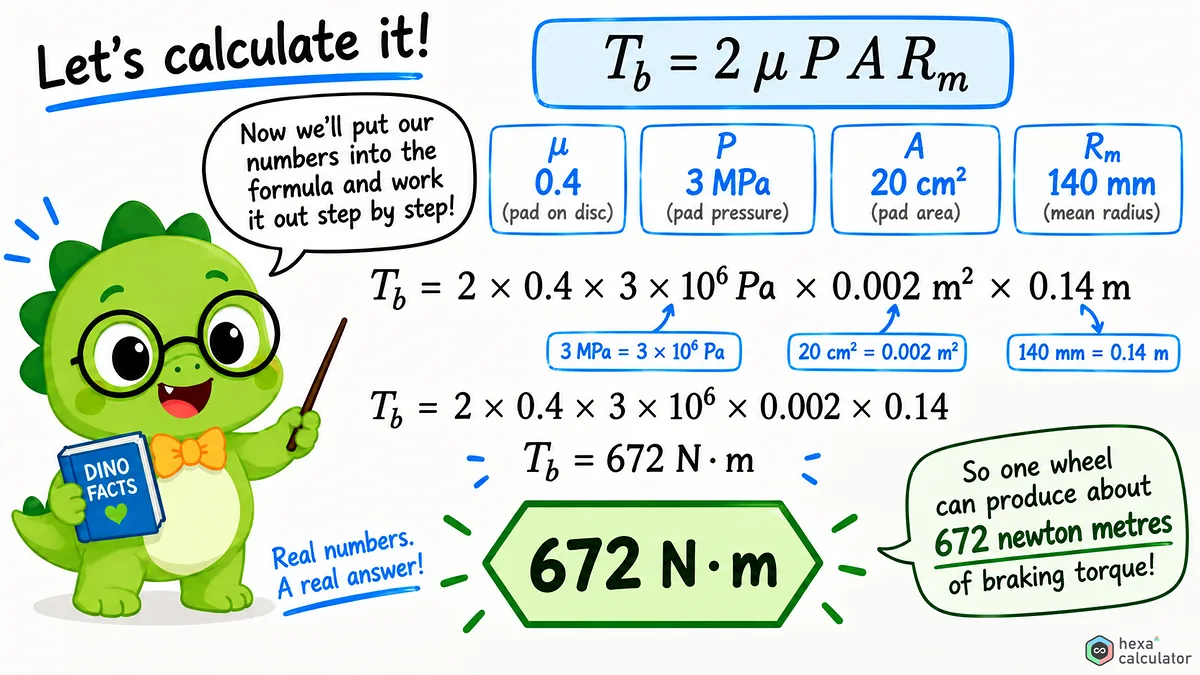

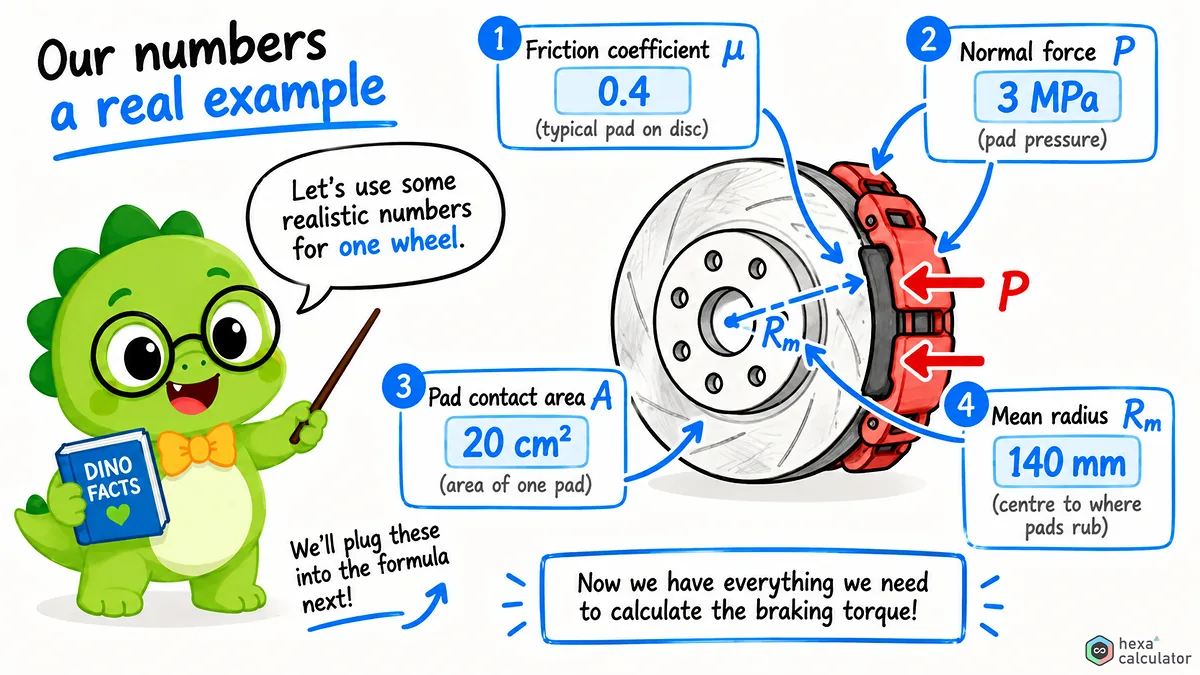

A quick example. Take $\mu = 0.4$ , $P = 3{,}000{,}000$ Pa (3 MPa, a hard pedal press), $A = 0.002 \text{ m}^2$ ( $20 \text{ cm}^2$ single piston), and $R_m = 0.14$ m (140 mm, roughly a 280 mm rotor). Plug it in:

T_b = 2 \times 0.4 \times 3{,}000{,}000 \times 0.002 \times 0.14 = 672 \ \text{N} \cdot \text{m}

That's the torque at a single wheel. Sanity-check the units: $\text{dimensionless} \times Pa \times m^2 \times m$ collapses to $(\text{N/m}^2) \times \text{m}^2 \times \text{m} = \text{N}\cdot\text{m}$

Real-world applications

Performance tuners reach for this formula whenever they're sizing a big brake kit. Bumping $R_m$ up by fitting a larger rotor gives the pads more leverage, so torque rises proportionally even with the same master cylinder and pads. Wet weather works the other direction. A thin film of water between pad and rotor can cut $\mu$ roughly in half, which halves the braking torque at the same pedal effort. That's the physics behind why a panic stop on a wet road needs so much more distance than the same stop on dry pavement.

Brake engineers also run the formula in reverse. Given a target deceleration and the wheel size, they solve for the required $T_b$ , then pick a piston area and pad friction combo that gets there inside the master cylinder's pressure budget. Motorcycle, bicycle, and industrial brake designers use the same equation; only the numbers change.

Tips for accurate calculations

Use the actual mean radius, not the outer rotor radius. The pads contact an annular band of rotor surface, and the mean radius sits in the middle of that band. For multi-piston calipers, add up the area of all pistons on one side of the rotor. Pad friction coefficients drift with temperature, so anything performance-oriented should be cross-checked against the manufacturer's hot and cold μ specifications. Hydraulic pressure comes from the master cylinder rating and the pedal ratio; sustained pedal pressures rarely get past 8 to 10 MPa even under panic braking.

Frequently asked questions

Why is there a factor of 2 in the formula?

Each rotor has two pads, one on each side, and they grip independently. The total torque is twice what a single pad would generate at the same pressure.

Does this formula apply to drum brakes?

Not really. Drum brakes have their own geometry, with self-energizing leading and trailing shoes, and they need their own equations. Use this calculator only for disc brake systems.

What's a typical μ for street brake pads?

Ceramic and semi-metallic street pads settle between 0.35 and 0.45 once they're warm. Track pads can reach 0.55 to 0.65, but they need higher operating temperatures before that friction actually shows up.

How do I convert this single-wheel torque into stopping distance?

Add the torque from all four wheels and divide by wheel radius to get the longitudinal braking force at the contact patch. Apply Newton's second law ( $\text{deceleration} = \frac{\text{force}}{\text{vehicle mass}}$ ), then use kinematics from there to estimate stopping distance.

Why does my answer seem too high?

Recheck the piston area. It should be the area on one side of the caliper, not the sum of both sides. The factor of 2 in the formula already accounts for the pads working in tandem.
